SmokeFighter^® Model D150E

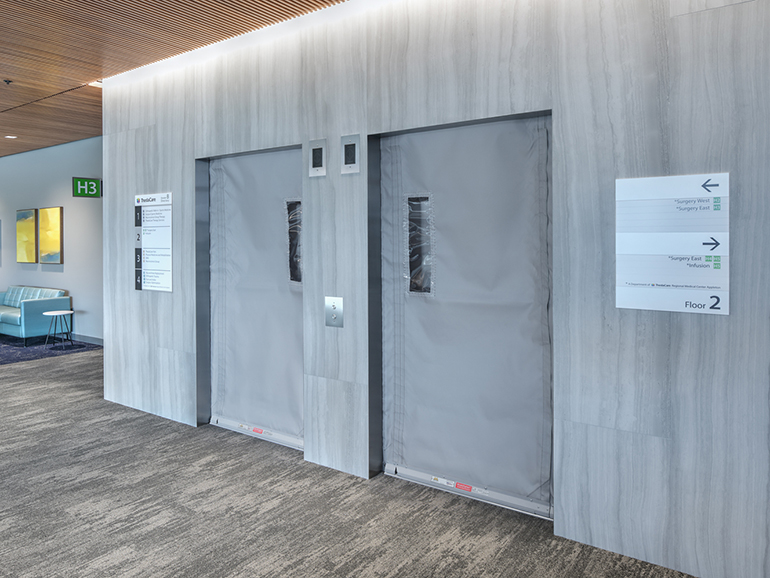

McKEON offers a smoke and draft listed curtain assembly at the point of access to an elevator car with a patented egress feature that complies with the exiting requirements of the building codes. The D150E smoke curtain incorporates a vision panel (smoke rated assemblies only) and has been tested without an artificial bottom seal.

The model building codes allow smoke rated (only) enclosures and protectives in specific applications. The SmokeFighter Model D150E has been engineered for use in these applications where egress is required. The smoke curtain is designed to prevent the migration of smoke in hospital corridors, elevator lobbies, elevator shafts at the point of access to the elevator car and provide the separation required to create smoke compartments in suites of sleeping rooms in hospitals. The D150E incorporates a vision panel (smoke rated assemblies only) when required and has been tested without an artificial bottom seal.
This technology is the subject of US Patent Nos. 9,440,100; 10,145,174; 10,569,112; and 10,864,394; and has additional patents pending.

Ratings

UL 1784 tested & listed without an artificial bottom seal

Code Compliance

Code Compliance Research Report CCRR-0455

ASME A17.1 compliant vision panel when required

ADA compliant
Regulatory Approvals

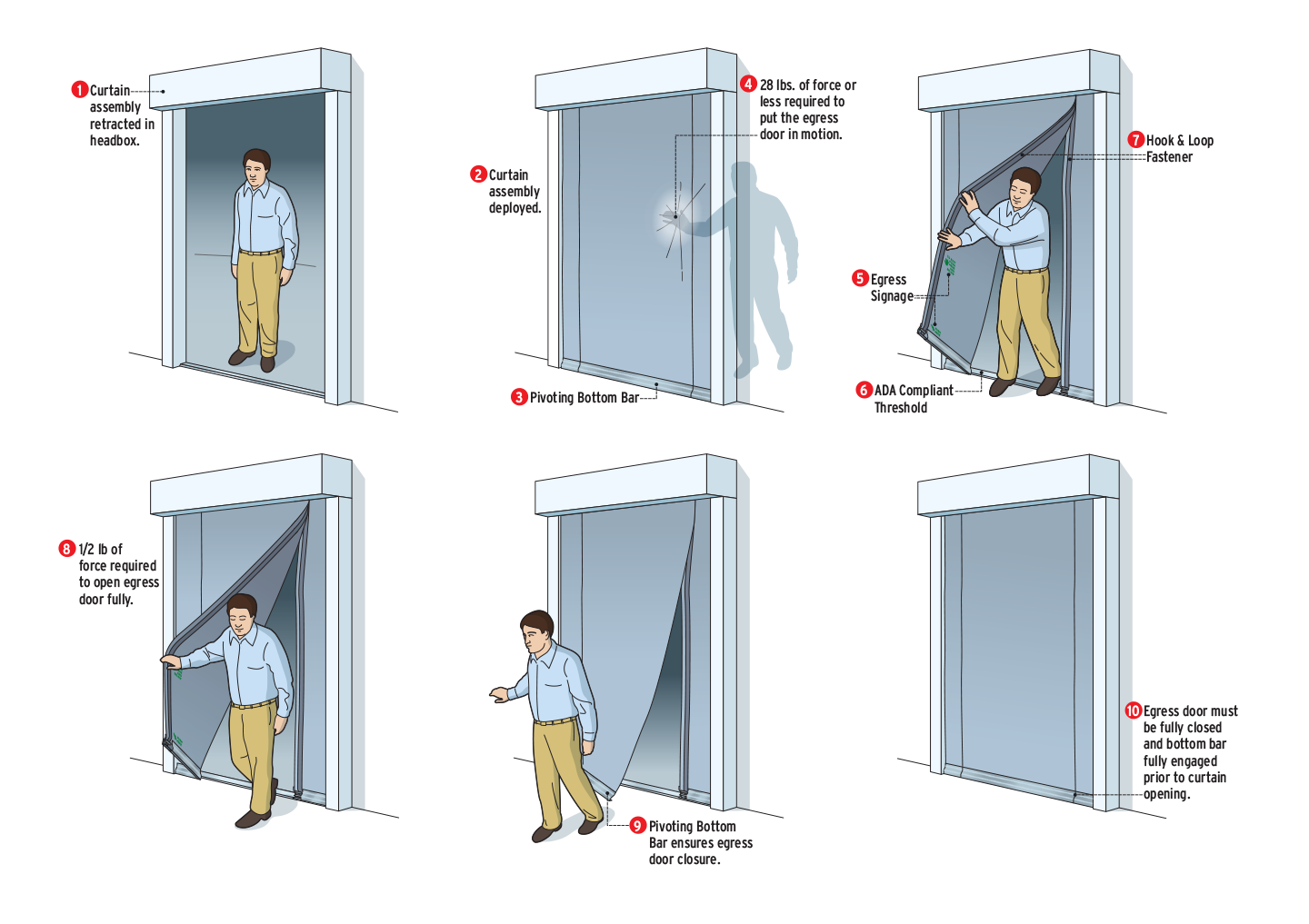

Egress

Available with up to 8 complying swing egress doors

Operation

Auto-Set^® automatic resetting

Fail-Safe Design – automatic self-closing mechanism does not require power to self-close

Size

Widths to 60′ and heights to 24′; for larger sizes and custom configurations consult the factory

Finishes (metal components only)

McKEON Sterling Gray

Powder coat of any color as selected

Stainless Steel — No. 4 Polish or No. 8 Mirror
