Auto-Set® H200 Series

The automatic closing H200 Series horizontal shutters prevent the migration of heat, smoke or hot/toxic gases by creating vertical compartments thereby separating the vertical spaces from one another. Horizontal fire shutters reduce construction costs. Smoke evacuation systems can become unnecessary and one horizontal fire shutter can be used in lieu of numerous conventional fire barriers on multiple floors.

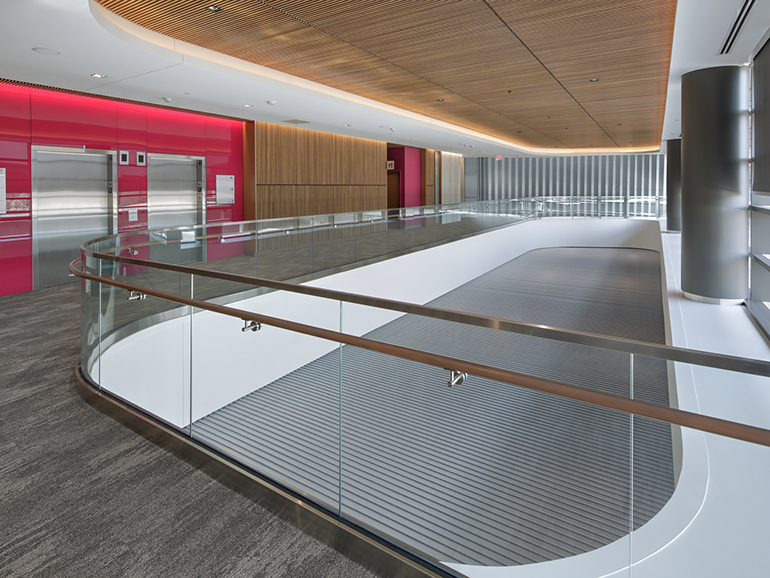

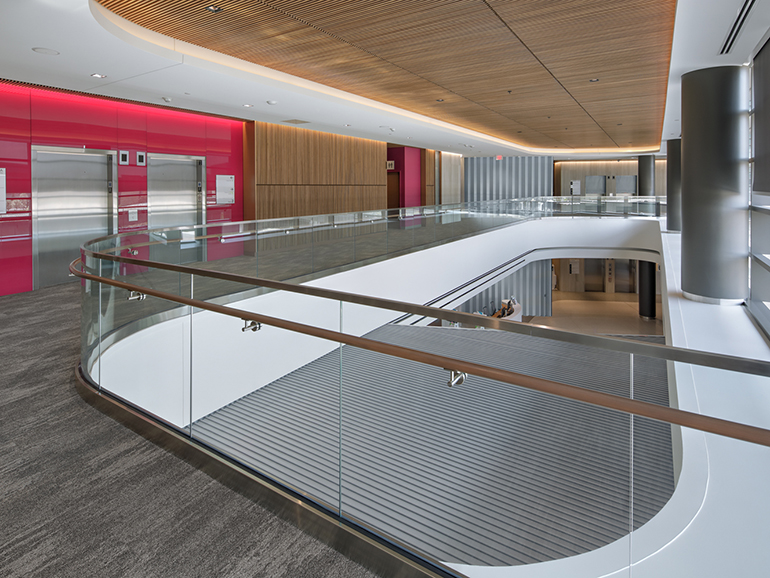

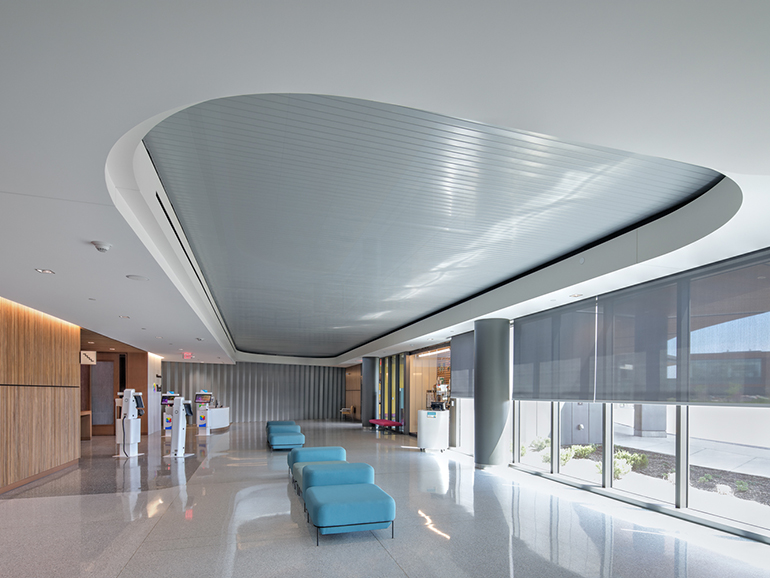

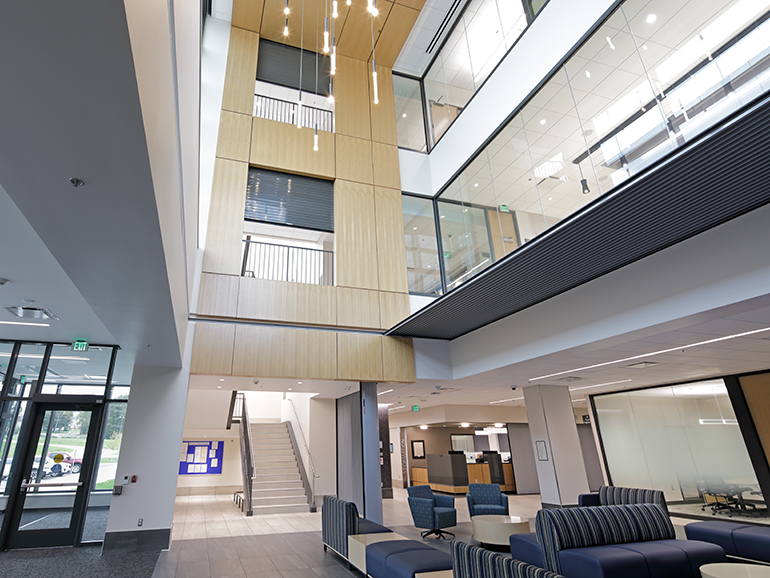

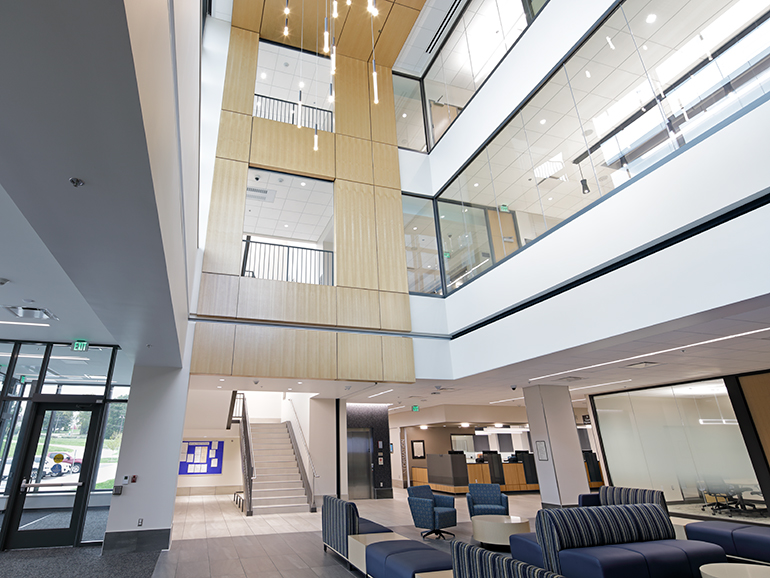

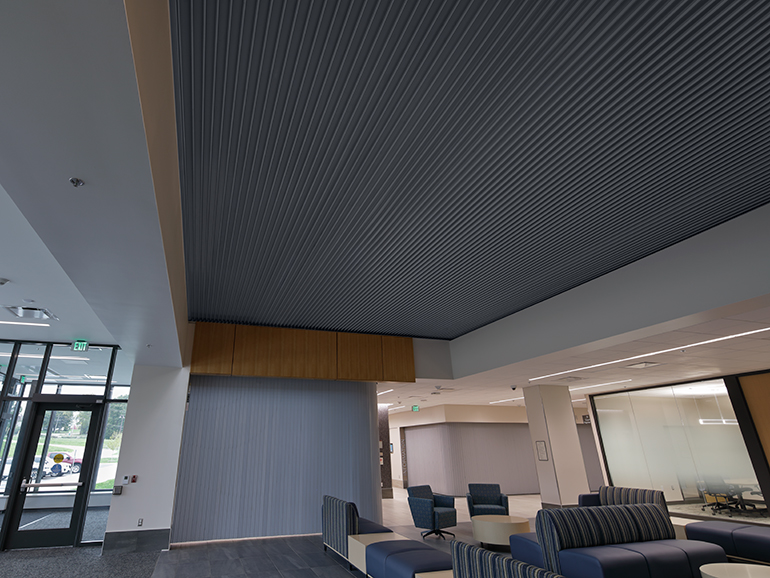

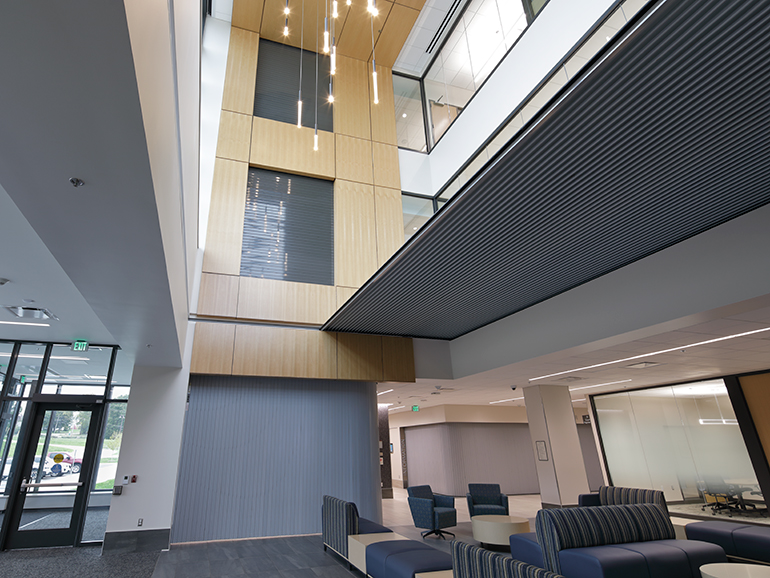

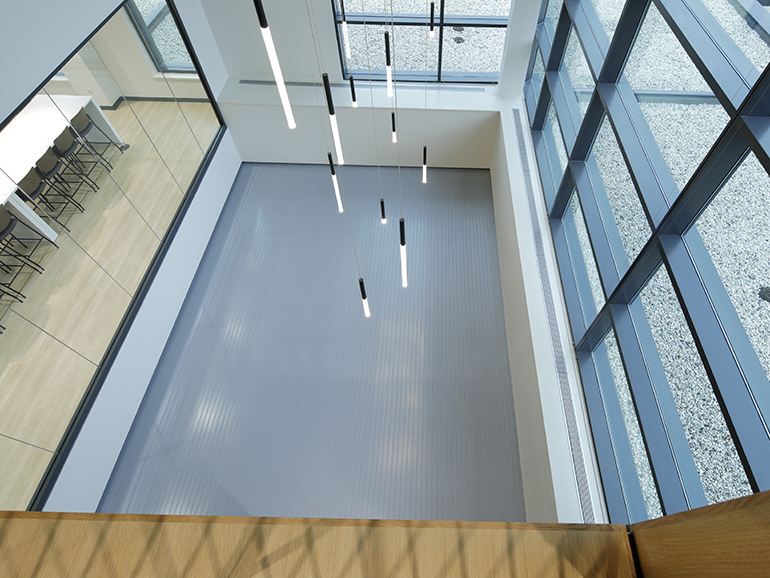

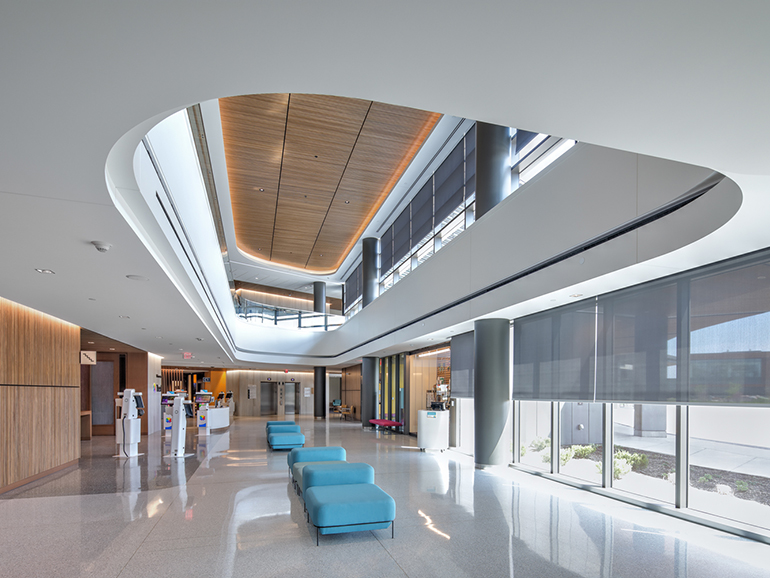

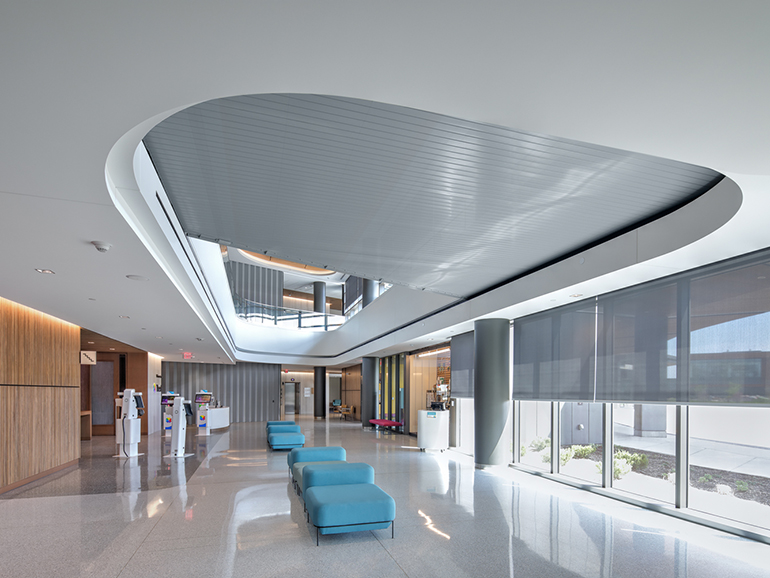

The H200 is ideal for closing off penetrations in ceilings for atrium conditions as well as convenience stairways, escalator enclosures and skylights.

For detailed code analysis consult “Fire Door Systems, A Guide to Code Compliance.”
This technology is the subject of US Patent No. 9,267,326.

Ratings

2-hour rated UL 10B*

Smoke & Draft labeled UL 1784
*Listed under the Canadian equivalent CAN/ULC S104

Code Compliance

CCRR-1086
Regulatory Approvals

Operation

Auto-Set® automatic resetting

Fail-Safe Design – automatic self-closing mechanism does not require power operation

Auto-Set® H200 Training Demonstration Video

Function

Interior and exterior applications

Coiling on the horizontal plane

Size

Widths to 30′, lengths to 90′ (180′ bi-parting); for larger sizes and custom configurations consult factory

Finishes

McKEON Sterling Gray

Powder coat of any color as selected

Stainless Steel — No. 4 Polish or No. 8 Mirror
